Model XSQ-450

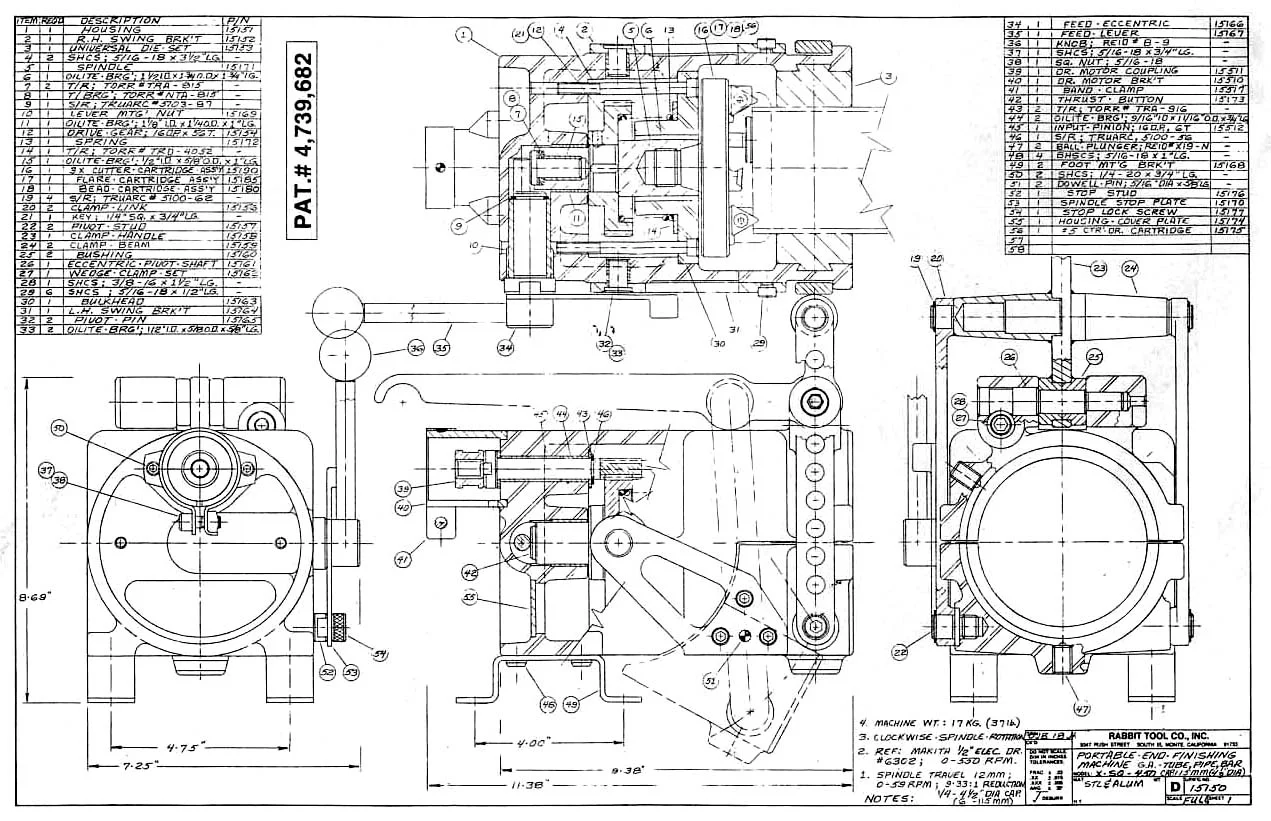

Technical Drawing
Standard Information
Adjustable eccentric pivot pin that adjusts for slightly over-and under-sized stock as well as machine wear. Because these XSQ models have a centerline spindle drive actuation to minimize side thrusts and friction, concentricity and squareness between the spindle and workplace assured.
