Tridan USB-2-6C

General Information

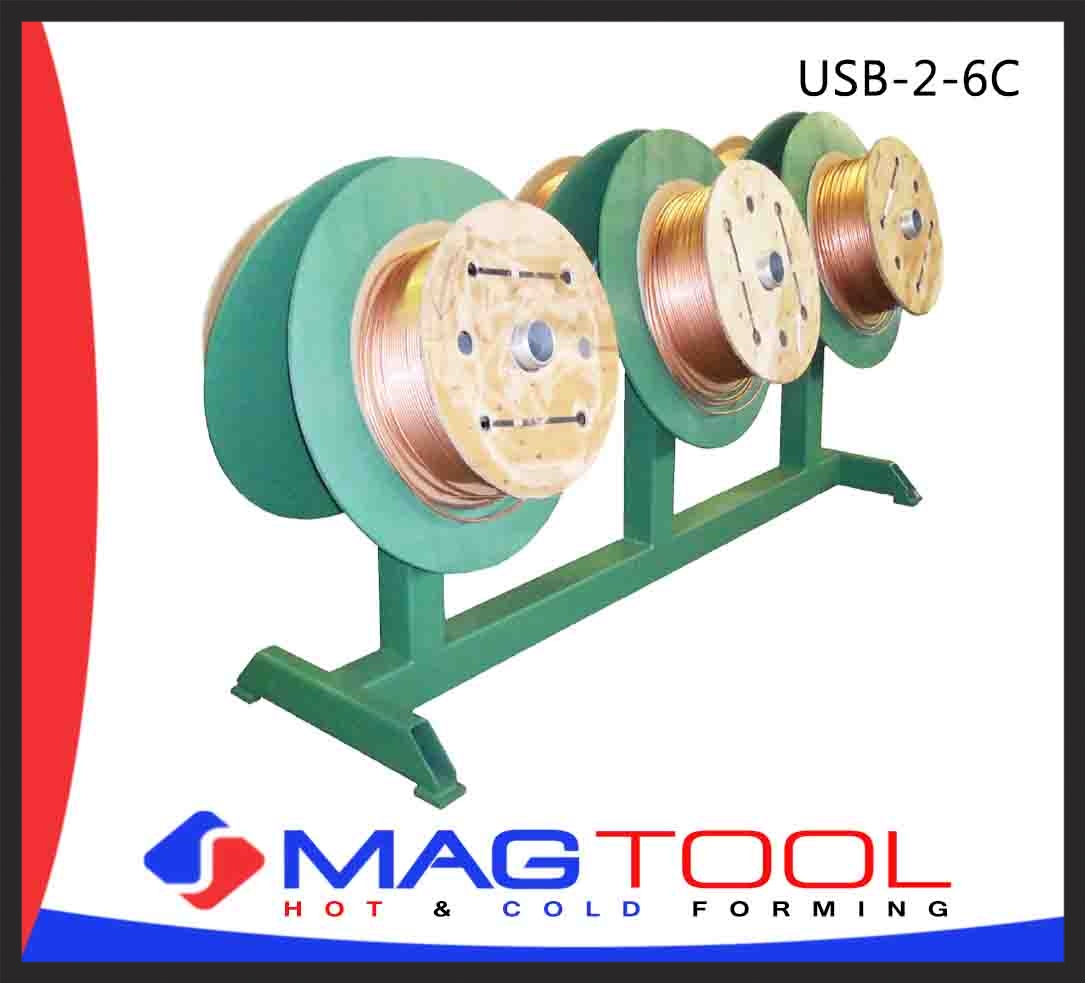

The Tridan Model USB Tube Decoiler Stand is used to unreel level wound tubing. This Decoiler Stand is available In 2, 4, 6 and 8 coil capacities. All of these Decoilers are supplied with friction-type brakes to reduce overspin on long feed lengths.

The function of the tubing uncoiler stand is to provide a smooth and even flow of tubing during the feed cycle with controlled deceleration at the termination of the feed stroke, in order that good productivity and uniformity of tube cut length be maintained, with minimum scrap losses. The tubing uncoiler stand will consist of one or more pairs of coil positions on opposed sides of the stand's frame. Each position will incorporate a spindle mounted cast aluminum uncoiler hub with the axis of the spindles being fifteen(15) degrees above horizontal. All positions incorporate a friction type drag brake to prevent backlash and provide deceleration; and since the axis of the spindle is above horizontal, the friction force is proportional to the weight of the coil. The coil reels are securely retained on the uncoiler hub by means of a pointed stud on the inside face of the hubs flange.

The standard uncoiler hub is designed for a 5"(127mm) diameter hole in the corrugated paper reel; however, special diameter hubs are available. The standard uncoiler stand will accept a maximum reel flange diameter of 42/44" (107/112cm), a maximum width over the flanges of 12/14" (30/36cm), and a maximum coil weight in excess of 300 pounds (136Kg). For bare tube coils (not reel-mounted) permanent payoff reels are available as an extra.
