Universal Chain Clamp

General Information

Universal Chain Clamps reform pipe to Schedule 20 and align pipe to Schedule 40. Available in carbon steel chain and stainless steel chain versions to fit pipe from 1” to 36” (25 mm to 914 mm). The versatile design provides the ability to accurately fit-up, weld and grind joints without removing the clamp. The Level and Support Device of the Universal Chain Clamp allows pipe, elbow, tee, flange and other fittings to be safely secured during the alignment and welding process. Although all Mathey Dearman Chain Clamps feature stainless steel Jackscrews, Jackbars and Main Blocks, stainless steel chain should be used on stainless steel or specialty alloy applications to avoid potential contamination.

FEATURES:

  • VERSATILE | Reforms pipe to Schedule 20 and aligns pipe to Schedule 40
  • PRECISE | Swivel-foot Jackscrews help ensure precise alignment by securely holding on uneven pipe surfaces
  • SAFER | Jackbars can be adjusted to relocate the contact point of Jackscrews for extra
    support of mating pipe or fittings
  • WIDE RANGE | A single Universal Chain Clamp covers the same range as 8 cage clamps

Universal Chain Clamp Includes:

  • Nickel plated carbon steel or stainless steel duplex roller chain
  • Universal stainless steel Jackbars - quantity as indicated in specifications
  • Stainless steel Main Block
  • Level and Support Device
  • Jackscrew Wrench
  • Heavy-duty Storage Box
  • Parts and Operating Manual

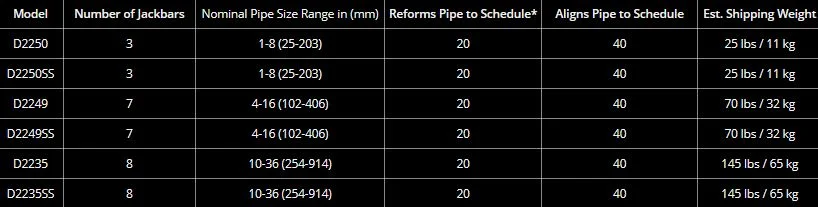

Specifications

*Calculations are based on pipe with a tensile strength of 45,000 lbs per square inch / 3,164 kg per square centimeterSS - Indicates clamp includes stainless steel chain. All clamps equipped with stainless steel Jackbars, Jackscrews, and Main Blocks…

*Calculations are based on pipe with a tensile strength of 45,000 lbs per square inch / 3,164 kg per square centimeter

SS - Indicates clamp includes stainless steel chain. All clamps equipped with stainless steel Jackbars, Jackscrews, and Main Blocks.

NOTE: MATHEY DEARMAN CHAIN CLAMPS CAN BE RECONFIGURED FOR STAINLESS STEEL AND OTHER SPECIALTY ALLOY APPLICATIONS. REPLACE THE CARBON STEEL ROLLER CHAIN WITH STAINLESS STEEL CHAIN. (ALL OTHER COMPONENTS OF CHAIN CLAMPS ARE MADE OF STAINLESS STEEL)

THE DOUBLE JACKSCREW CHAIN CLAMP SHOULD NEVER BE USED AS THE SOLE SUPPORT FOR THE PIPE OR TO LIFT THE PIPE. DO NOT EXCEED PIPE SIZE RANGE LISTED OR USE ANY TYPE OF CHAIN OTHER THAN SUPPLIED WITHOUT FIRST CONTACTING THE MATHEY DEARMAN SALES DEPARTMENT. USE OF CHAIN NOT SUPPLIED WITH THE CLAMP BY MATHEY DEARMAN WILL VOID THE CLAMP WARRANTY.

COMPLETE WELDING OF THE JOINT CAN BE ACCOMPLISHED WITH REMOVING THE CLAMP. ADD-ON JACKBAR CAN BE ADDED IF PRESSURE NEEDS TO BE APPLIED BETWEEN THE CLAMP JACKBARS. JACKSCREW PADS PIVOT INDEPENDENTLY TO HANDLE UNEVEN SURFACES. OPTIONAL SPACING SCREWS CAN BE ADDED FOR PRECISE WELD GAP ADJUSTMENT.
