Type 2

General Information

For quick and accurate alignment and clamping of flanges, nozzles, short pipe sections to pipes and cylindrical tanks. Wedge shaped clamps provide automatic compensation even for parts with greatly differing diameters.

In order to prevent electrolytic corrosion, we recommend the versions with stainless steel tensioning wedge (VA 12CrNi177 1.4310).

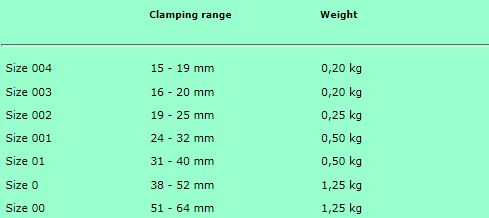

 Dimensional sketch type 2
