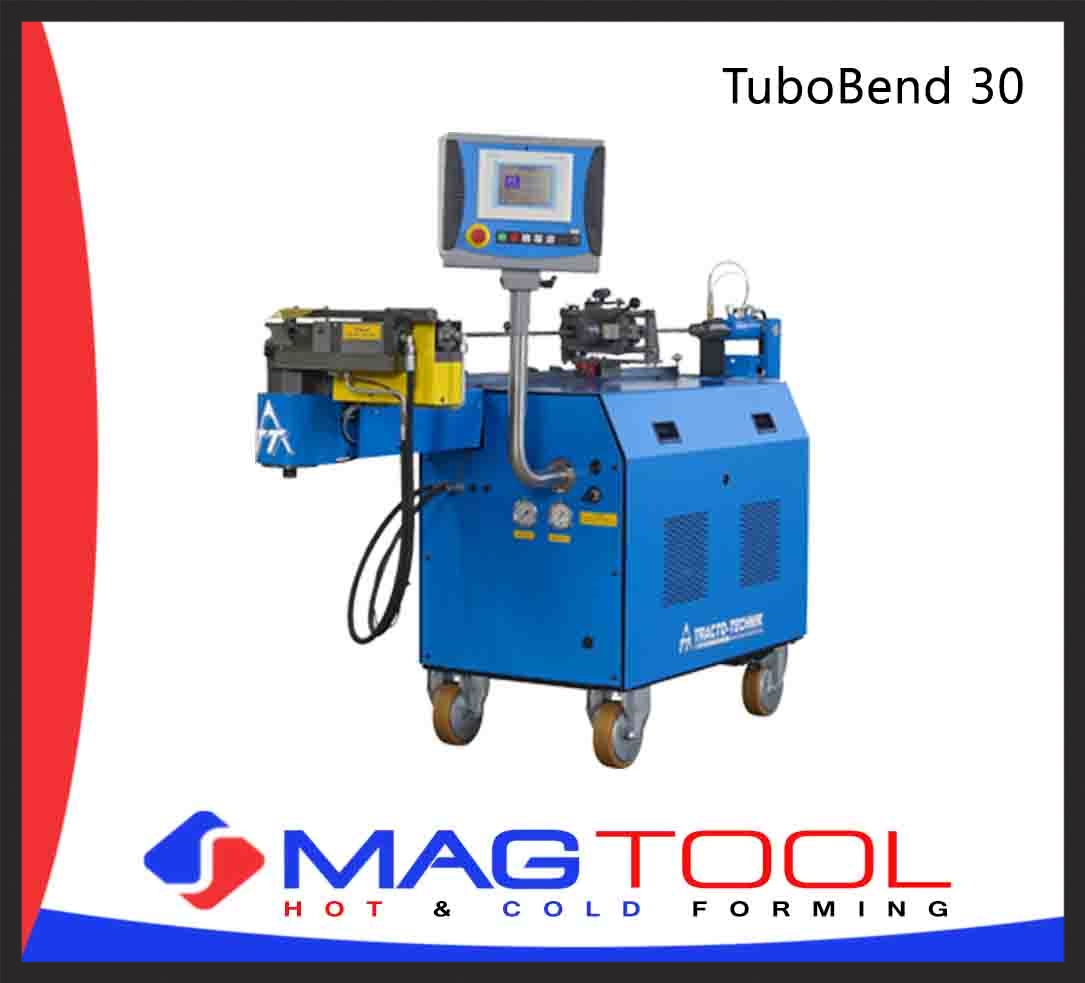

TuboBend 30
General Information
Compact and exposed bending head for maximum bending space
Electronic SIMATIC Touch Panel control with user guidance, automatic sequencing of the data records and storage capability for 100 bending programs
Hydraulic pipe clamping with adjustable clamping pressure
Hydraulic pressure die positioning
Hydraulic mandrel retraction
Machine mobile and flexible to use
Additional equipment, options and accessories
Positioning device for pipe length and rotation, incl. 3-jaw chuck
Mechanical collet chuck or hydraulic collet chuck
Adjustable bending speed
Follower-type pressure die (linear guiding)
Automatic pressure die retraction
Length and rotation measuring system with digital display
Anticipated mandrel retraction for optimizing the bend quality
Mandrel lubrication device
Remote control or foot switch for bending and clamping function
Mobile control board
Interface for data import from PIPEFAB BE pipe bending software
Pipe bending software PIPEFAB BE for installation on an external PC
Interface for remote maintenance of the machine control via VPN
