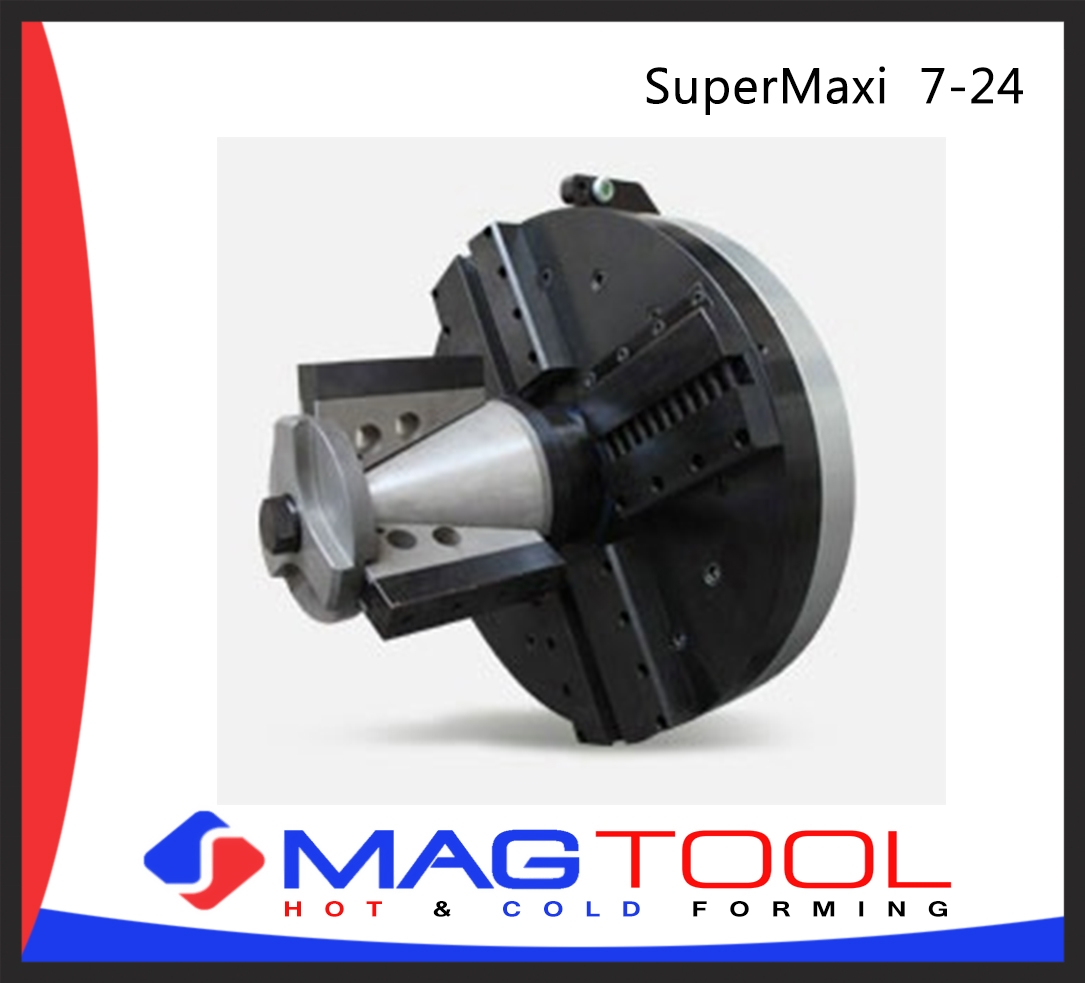

GBC SuperMaxi 7-24
RANGE ØI 180-504 MM (7,08″ – 19,84″)
This pipe beveling machine Supermaxi 7_24 is designed for piping industries and welding workshops for processing pipelines, boilers and fittings.
The Supermaxi 7_24 is equipped with a 6 points of contact locking system able to grant stability and absence of vibrations during the operations. Furthermore, the installation and centering are extremely easy, precise and functional.
The mandrel of the pipe beveling machine Supermaxi 7_24, thanks to an innovative design, allows the use of standard solid body tools but also wedge locking tools with interchangeable inserts (both interchangeable with those of the model Hypermaxi 20_40). The machine layout is designed so that the chips of the previous pass will not affect the following passes.
With an optional kit, the range of the machine can be extended up to 24″ (609,6 mm) OD.The pipe beveling machine Supermaxi 4_16 is available in pneumatic, hydraulic or electric versions.
RANGE:Working range from 7” to 20” (180-504 mm) in standard configuration and up to 24” (609,6 mm) with the optional extension kit.
FUNCTIONS:
Milling processes, external and internal tapering, external and internal beveling of pipes
MATERIALS:
Carbon steel, stainless steel, duplex, inconel, others.
POWER:Pneumatic, hydraulic or electric.
