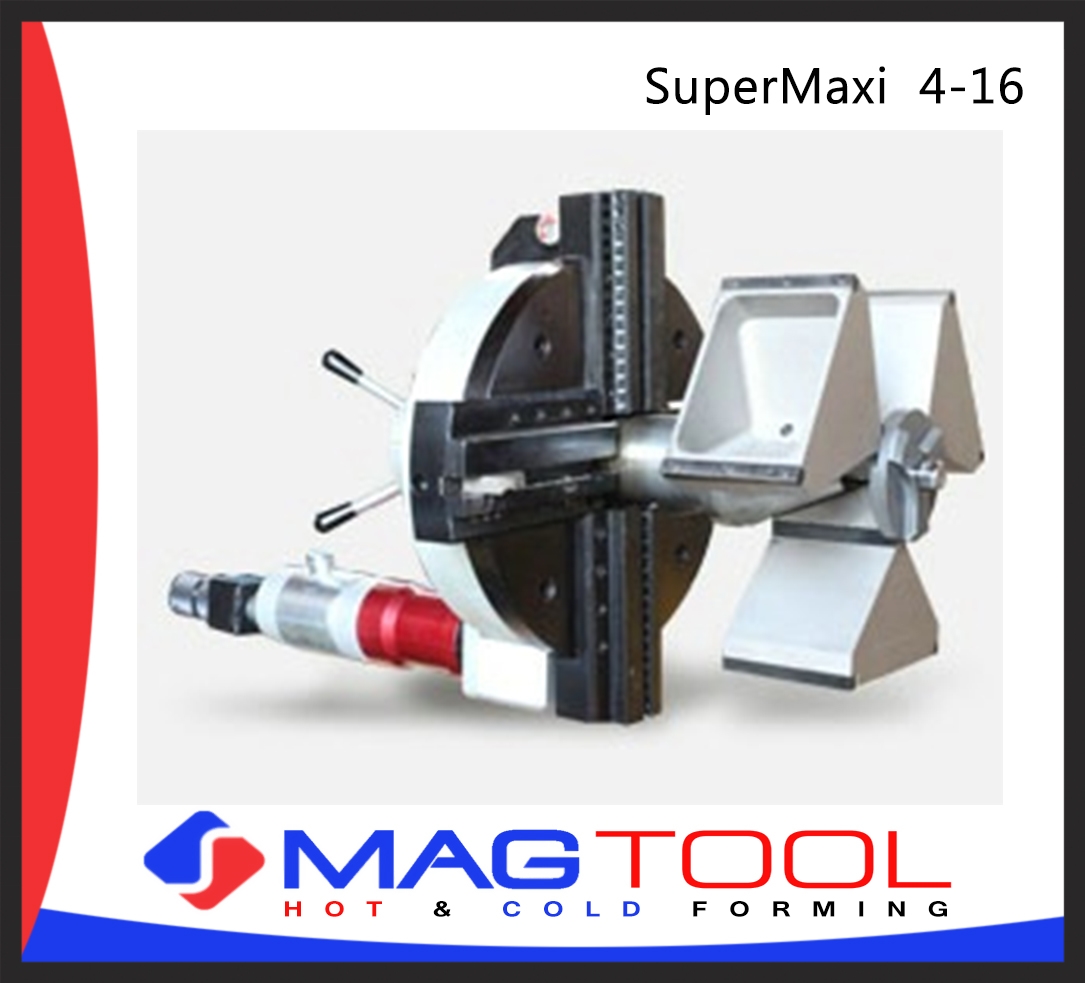

GBC SuperMaxi 4-16
RANGE ØI 94,5– 318,5 MM (3,7″-12,5″)
Pipe beveling machine Supermaxi 4_16 is designed forpiping industries and welding workshops for processing pipelines, boilers and fittings.
The Supermaxi 4_16 is equipped with a 6 points of contact locking system able to grant stability and absence of vibrations during the operations. Furthermore, the installation and centering are extremely easy, precise and functional.
The mandrel of the pipe beveling machine Supermaxi 4_16, thanks to an innovative design, allows the use of standard solid body tools but also wedge locking tools with interchangeable inserts. The machine layout is designed so that the chips of the previous pass will not affect the following passes.
With an optional kit, the range of the machine can be extended up to 16,45″ (418 mm) OD.
The pipe beveling machine Supermaxi 4_16 is available in pneumatic, hydraulic or electric versions.
RANGE:Working range from 3,7” to 12,5” (94,5-318,5 mm) in standard configuration and up to 16,45” (418 mm) with the optional extension kit.
FUNCTIONS:
Milling processes, external and internal tapering, external and internal beveling of pipes
MATERIALS:
Carbon steel, stainless steel, duplex, inconel, others.
POWER:Pneumatic, hydraulic or electric
