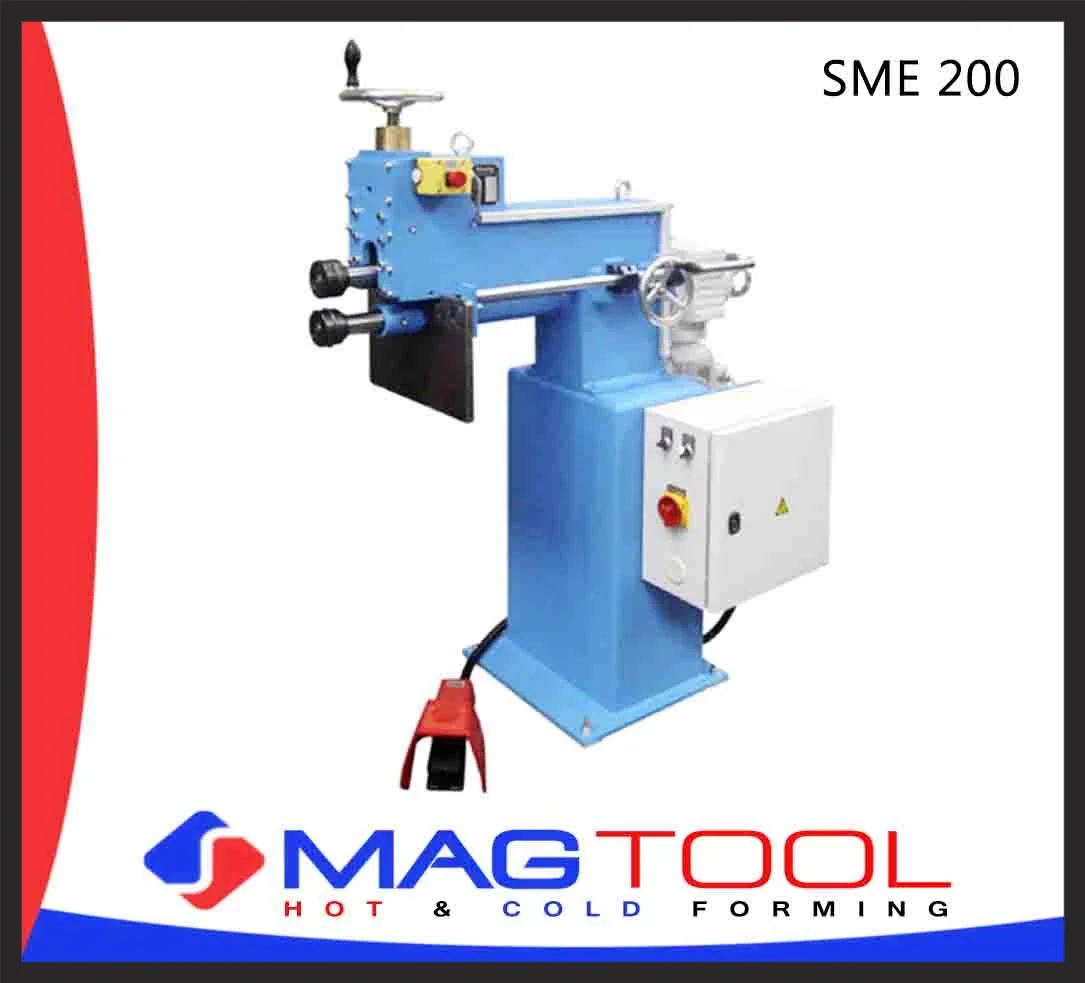

SME 200
General Information
Machine with a program that runs fully automatically. The operation of the machine is done with a touchscreen and by foot switch. The feed roller can be very accurately positioned by the motorised setting by means of an impulse generator.
The machine can also be supplied with hydraulic roller feed and semi-automatic operation.
Standard Features
Parallel feed of the upper roller with working shaft mounted in roller bearings
Machine in welded steel construction
Cylindrical unloading of the under shaft
Drive of the rollers by double foot switch for clockwise and anticlockwise running
Shafts hardened and ground
Easy axial adjustment of the lower roller by handwheel
Feed for the upper roller by handwheel
Feed for the upper roller by hand wheel
Control included in separately fitted control cubicle
Colour: Sky blue RAL 5015, Light grey RAL 7035
Designed in accordance with EC Guidelines, Special design on request
