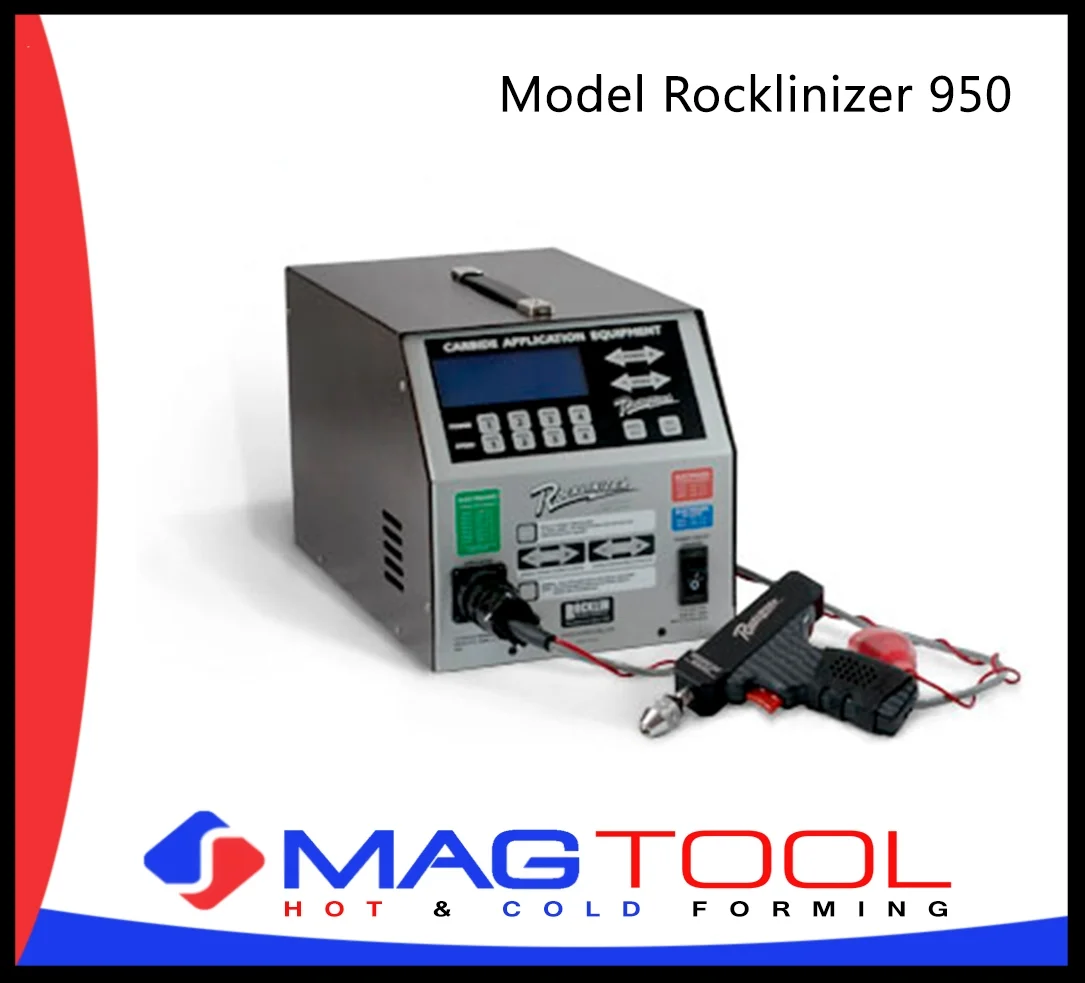

Model Rocklinizer 950

General Information

The Rocklinizer equipment, using the Rocklinizing process, applies a hard and wear resistant surface of Tungsten Carbide, Titanium Carbide and Rockhard electrode material to metals, tools and dies.

The Rocklinizer electronically impregnates and deposits wear-resistant material both underneath and on top of metal surfaces utilizing our proven spark deposition process. Unlike welding or metal spraying, no appreciable heat is generated; and the electrode material will not separate or flake off the workpiece. After Rocklinizing, no heat treatment, grinding or other surface treatment is necessary.

The end result of this surface treatment is to increase productivity and reduce costs. When the tools and dies remain in operation without replacement due to wear, there will be less machine downtime, operator idle time, and expense of new or resharpened tools and dies.

These savings justify the purchase of the Rocklinizer.

Rocklinizer Model 950 / 950E - Deposits from .0001" to .010" and higher in a single application, controllable within .0001” by machine setting. Approximately 30 lbs. (13.2 kg.)

The Model 950 Rotary Applicator is automatically triggered when the electrode is placed in contact with the workpiece, or manually triggered by the operator.
