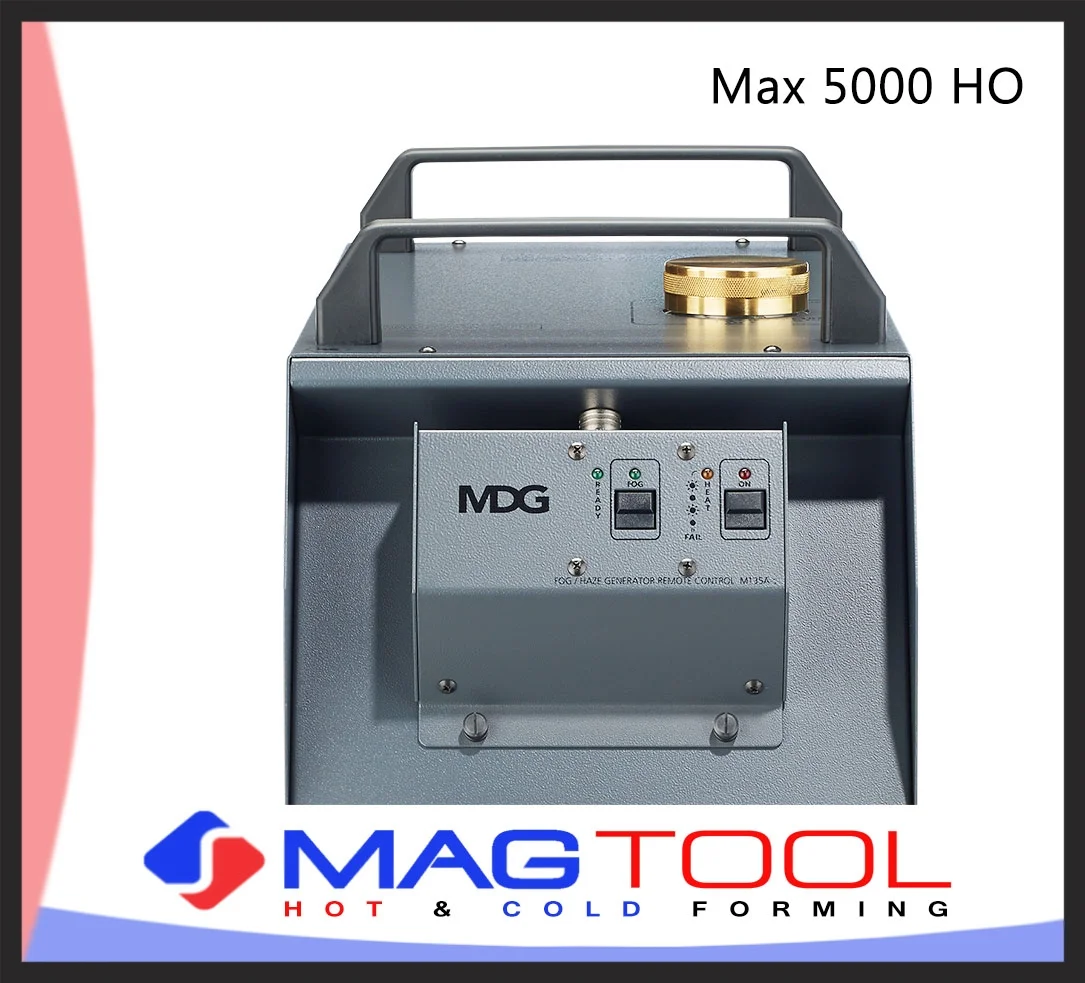

Max 5000 HO

Standard Features

• Huge, manually adjustable fog output

• Maximum fog output up to 445 m3 (15,750 ft3) per minute

• Automatic Purging System™ (APS™) to prevent build-up and clogging

• Virtually noiseless, with the finest fog and the longest hanging time

• Detachable remote control and 8 m (26 ft) cable included

• Compatible with DMX interface and remote control timer

Specifications

Maximum fog output per minute                                                                                     445 m3 (15,750 ft3)

Fluid consumption                                                                                                               4.5 L (1.2 US gallon) per hour at 4.14 bar (60 psi)

Gas type                                                                                                                                  N2 only

Gas consumption                                                                                                                  5 kg (11 lb) per hour at 4.14 bar (60 psi)

Reservoir capacity                                                                                                                6.5 L (1.7 US gallon)

Automatic Purging System™ (APS™)                                                                              Standard feature

Fog colour                                                                                                                                Pure white

Particle size                                                                                                                             0.5 - 0.7 microns

Warm-up time                                                                                                                         8 minutes (maximum)

Fluid type                                                                                                                                  MDG Neutral Fog Fluid (SDS available on request)

Operating voltage                                                                                                                  115 or 230 VAC, 50/60 Hz

Power consumption                                                                                                              2,815 W
