Sleeve Clamp

General Information

Introducing a safer, quicker and more precise solution for installing pipe half sleeves – Dearman Sleeve Clamps. Using our industry-leading clamping technology, these extreme duty clamps provide virtually 360 degrees of uniform clamping pressure for perfect fit-ups. All models feature 2-speed hydraulic hand pumps for quicker installation time and high strength modular design for safer handling. Choose from 4 models of clamps for your specific need and application - 5,000 PSI or 10,000 PSI of clamping pressure and 10” to 24” or 10” to 48 “ range for sleeves up to ¾ ‘ (19mm) thick. All clamps include a rugged steel transportation and storage box.

FEATURES:

  • SAFE | No unstable bottle jacks to suddenly slip and disengage

  • PRECISE | Equal clamping force provides better fit-up

  • EASY TO HANDLE | Engineered to be installed by one person

  • ADAPTABLE | Fits a wide range of pipe sizes and sleeve thicknesses

  • DURABLE | Rugged corrosion-resistant construction for years of use

Sleeve Clamp Includes:

  • Nickel plated carbon steel duplex roller chain (DB models) or Nickel plated carbon steel leaf chain (DC models) for pipe size range

  • High strength stainless steel Main Block with hydraulic cylinder

  • 2-Speed hand operated hydraulic pump

  • Heavy duty transportation and storage box

  • Parts and Operating Manual

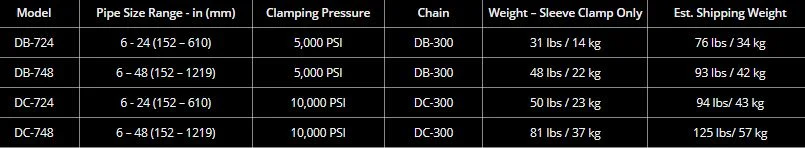

Specifications

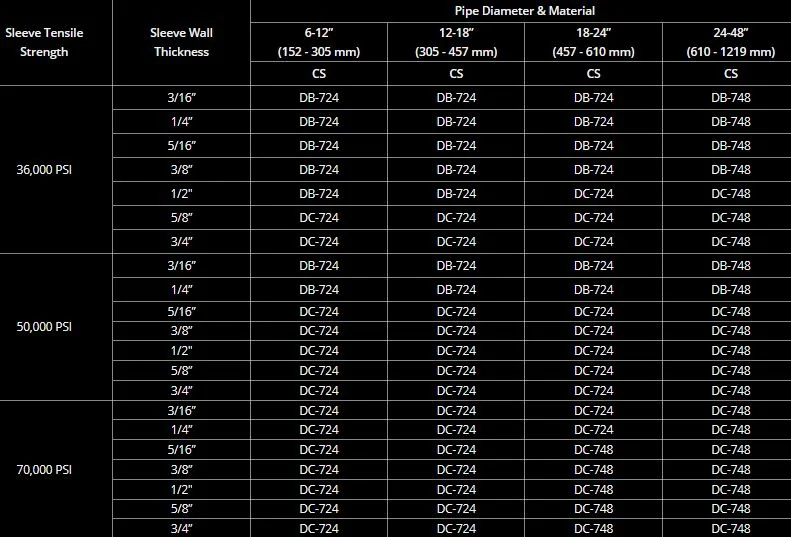

Dearman Sleeve Clamp Recommended Applications
