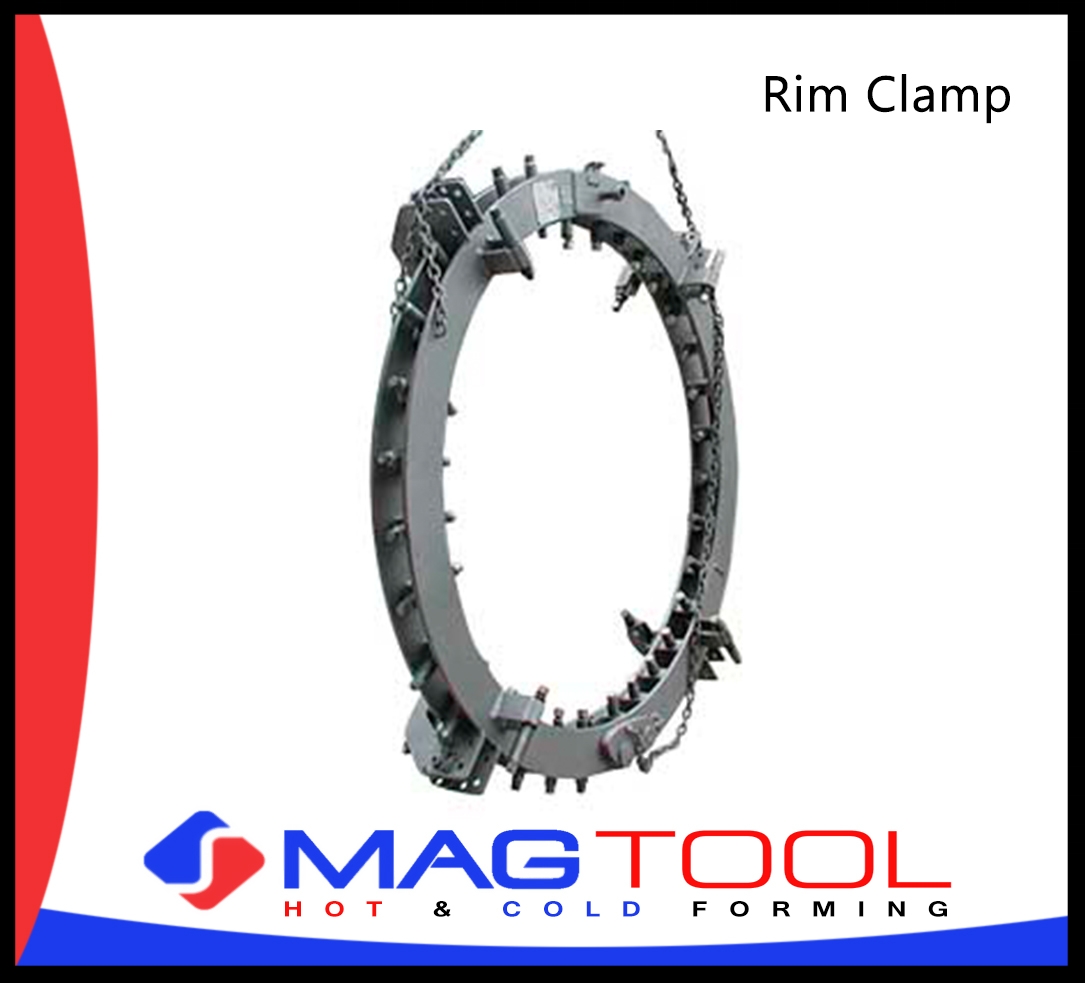

Rim Clamp
General Information
Mathey Dearman Rim Clamps are built for tough reforming jobs and are ideal for applications requiring 100% weld and grind without releasing clamping pressure. Symetrically placed Jackscrews apply pressure on high points to precisely reform and align pipe or shells. All surfaces of the Rim Clamp in contact with the pipe are made of stainless steel enabling the Clamp to be used on a variety of materials.
Mathey Dearman Rim Clamps will reform 45,000 PSI tensile strength pipe up to Schedule 80, with out-of-round conditions up to 2” (51 mm), depending on wall thickness.
The 14" to 16" (356 mm to 406 mm) and larger Rim Clamp closes over the pipe automatically, for quick and simple operation.
FEATURES:
ACCURATE | Apply reforming pressure exactly where required
STRONG | Corrects out-of-round conditions up to 2” (51 mm)
EASY | Self-latching design (14" / 356mm and larger) makes installation simple and safe
VERSATILE | Handles a range of pipe sizes and materials

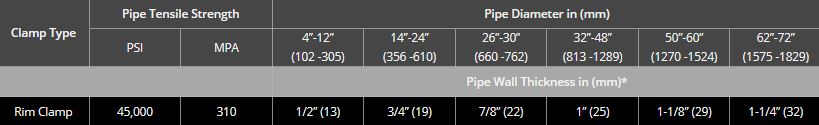

Reforming Capability - Maximum Wall Thickness for Specified Material Tensile Strength

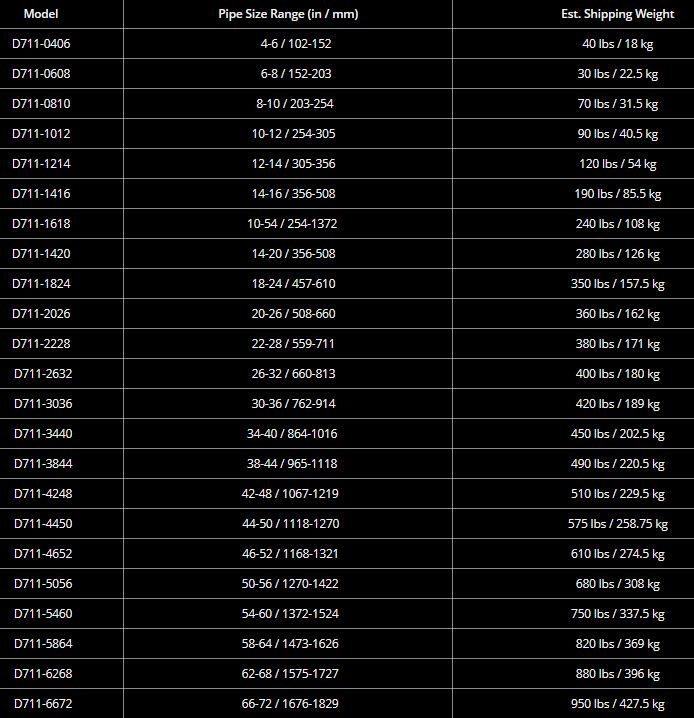

Specifications
* Calculations based on material temperature of 72° F (22° C)
