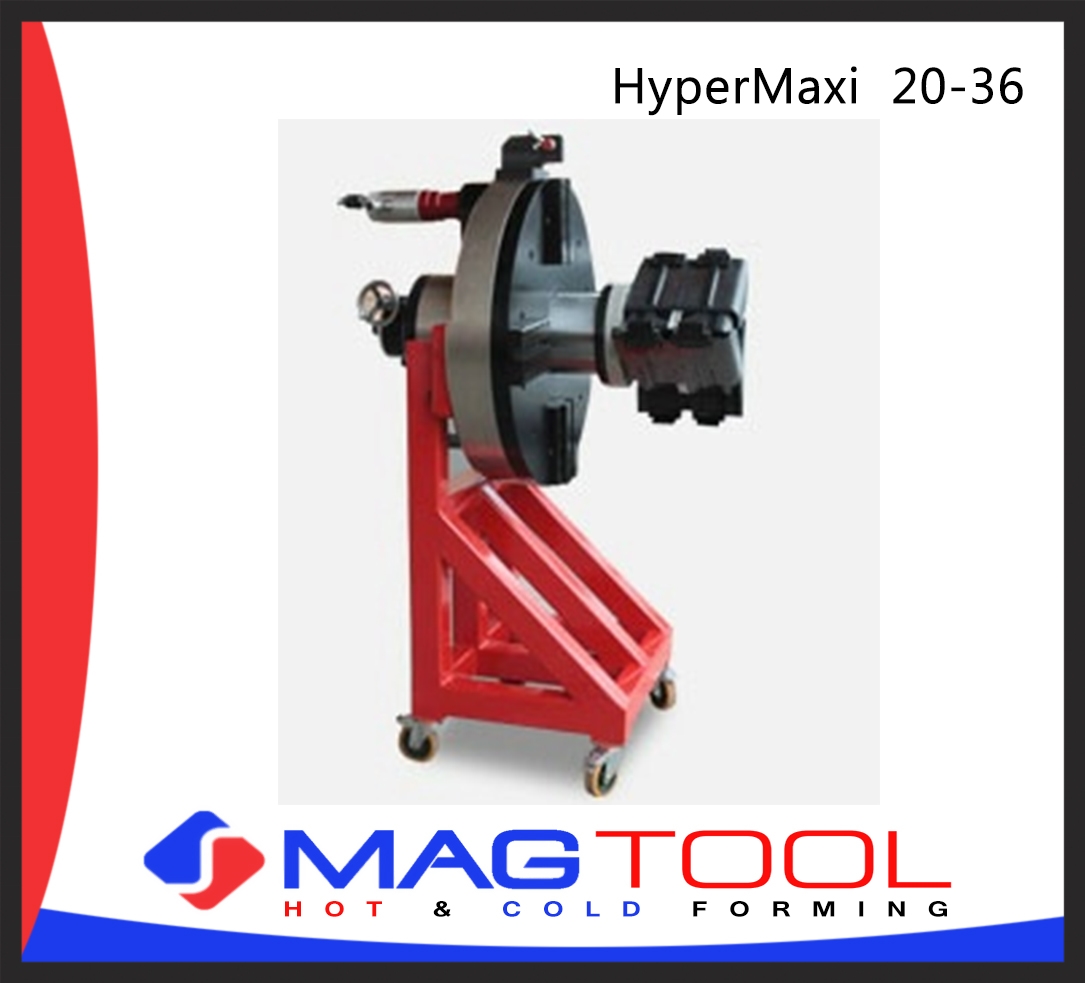

GBC HyperMaxi 20-36
RANGE 508 – 937 MM (20″-36”)
The pipe beveling machine Hypermaxi 20_40 is a pipe beveling machine that covers a wide ID range from 20” to 36”. Its versatility makes it essential in many fields of application. Strong point of the Hypermaxi 20_40 is the high removal rate of material obtained by HSS tools or by wedge locking tools with interchangeable inserts (both interchangeable with those of the model Supermaxi 7_24).
With the optional kit, the range of the machine can be extended up to 40″ (1016 mm) OD.
The pipe beveling machine Hypermaxi 20_40 is available in pneumatic or hydraulic version.
On the Hypermaxi 20_40 can be installed an automatic feeding system (available only for the hydraulic version).
RANGE:Working range from 20” to 36” (508 – 937 mm) in standard configuration and up to 40” (1016 mm) with the optional extension kit.
FUNCTIONS:
Milling processes, external and internal tapering, external and internal beveling of pipes
MATERIALS:
Carbon steel, stainless steel, duplex, inconel, others.
POWER:Pneumatic or hydraulic
