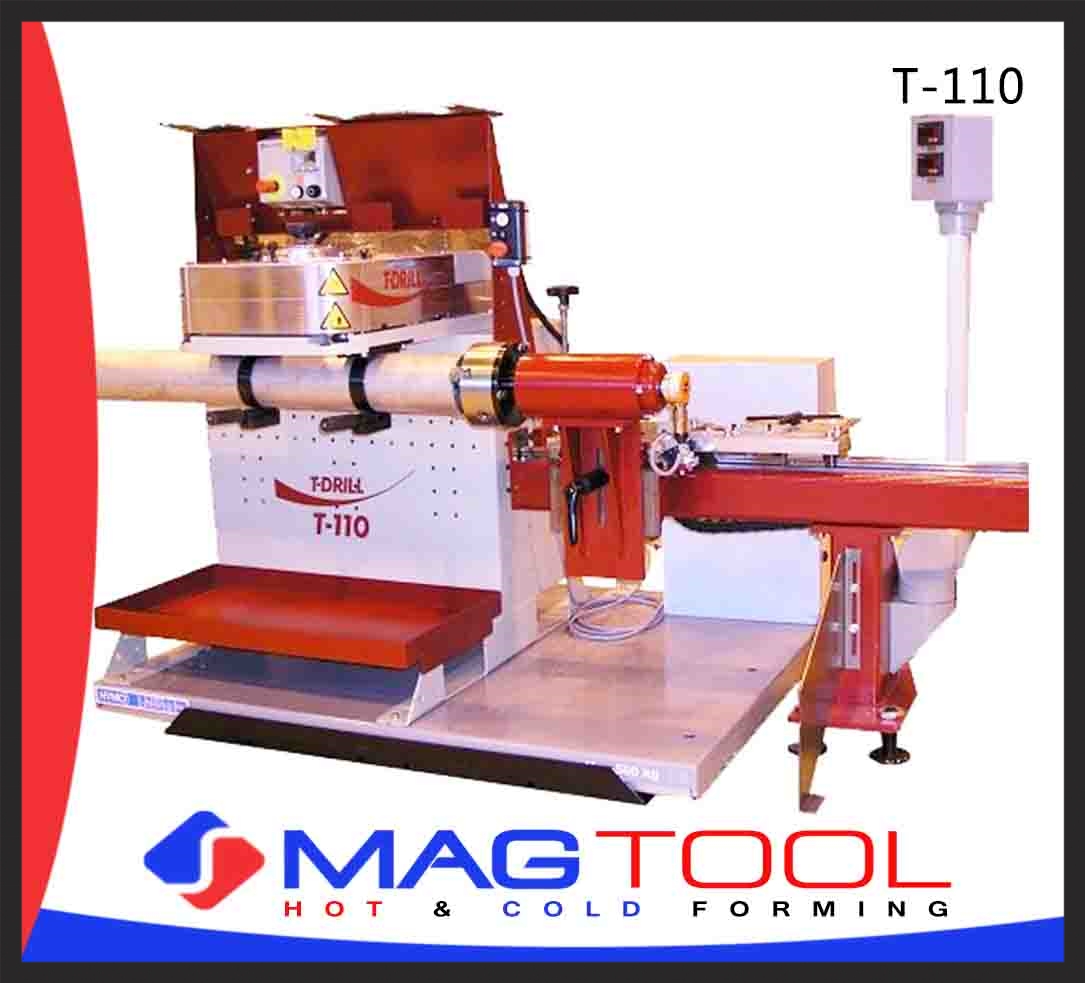

Model T-110 T-Drill

General Information

T-110 measuring table is used for controlled and precisely dimensioned transfers of pipes in the angle and axial directions. Using the measuring table it is possible to estimate accurately both the distance as well as the angle gap between two collars (or the start-off point and the collar). The measuring table is suitable for pipe sizes Ø1⅛ - 8’’. The maximum length of the pipe is 95'' and 118''.

T-110 will be lifted and moved down with help of a lifting table. The lifting table will be bolted to the floor and T-110 is fastened to the lifting table.

There are two standard lengths available: 95'' and 118''.

Tube Positioning Table 6000

  • Manual positioning system for run-tube

  • For diam. 1⅛ – 12'' and lengths min. 3 x O.D. and max 118''

  • Positioning tolerances:

    • length +/- 0.02'' (machine); +/- 0.04'' (tube)

    • angle +/- 0.5º (machine); +/- 1.0º (tube)

  • Longitudinal and angle position can be seen from digital
    read-out

Tube Positioning Table 3000

  • Manual positioning system for run-tube

  • For diameters 1⅛ – 12'' and lengths min. 3 x O.D. and max 95''

  • Positioning tolerances:

    • length +/- 0.02'' (machine); +/- 0.04'' (tube)

    • angle +/- 0.5º (machine); +/- 1.0º (tube)

  • Longitudinal and angle position can be seen from digital
    read-out
