Expanders - Product Requirements

Thorough and accurate preparation of the following information will provide the necessary information required to select the proper types and capacities of all required production equipment. Please complete one Requirement Sheet for each tube specification.

Company Name

Email Address

Phone

(###)

###

####

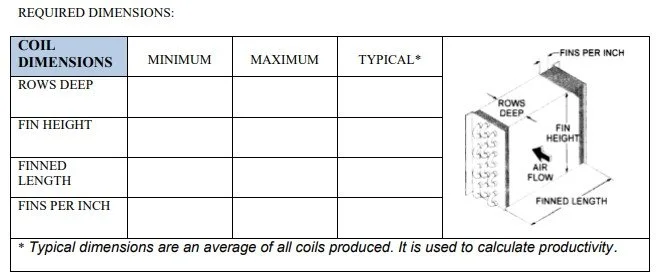

Coil Dimensions

Rows Deep

Enter Minimum, Maximum and Typical

Fin Height

Enter Minimum, Maximum and Typical

Finned Length

Enter Minimum, Maximum and Typical

Fins Per Inch

Enter Minimum, Maximum and Typical

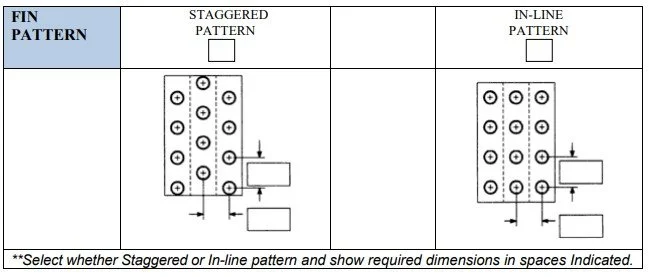

Fin Pattern

Reference diagram bottom of this page.

Staggered Pattern

In-Line Pattern

Tube Specification (inner grooved)

Enter OD (Outside Diameter), TF (Bottom Wall Thickness, H (Ridge Height)

Tube Specification (plain wall)

Enter OD (Outside Diameter), ID (Inside Diameter), TF (Wall Thickness)

Tube Supplier Name

Tube Supplier Part Number

Tube Material

Temper & Alloy

Tube Form Available

Level Wound Coils with Reel

Level Wound without Reel

Straight Lengths

Desired Expander Tip OD

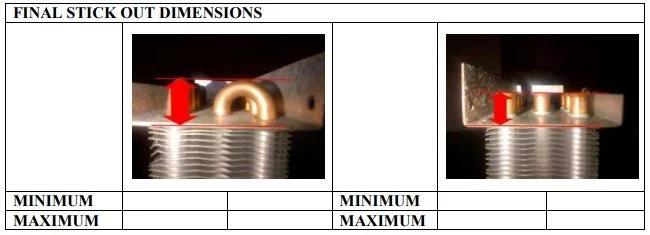

Final Stick Out Dimensions

Please refer to images below survey.

Please indicate Minimum & Maximum Measurements
