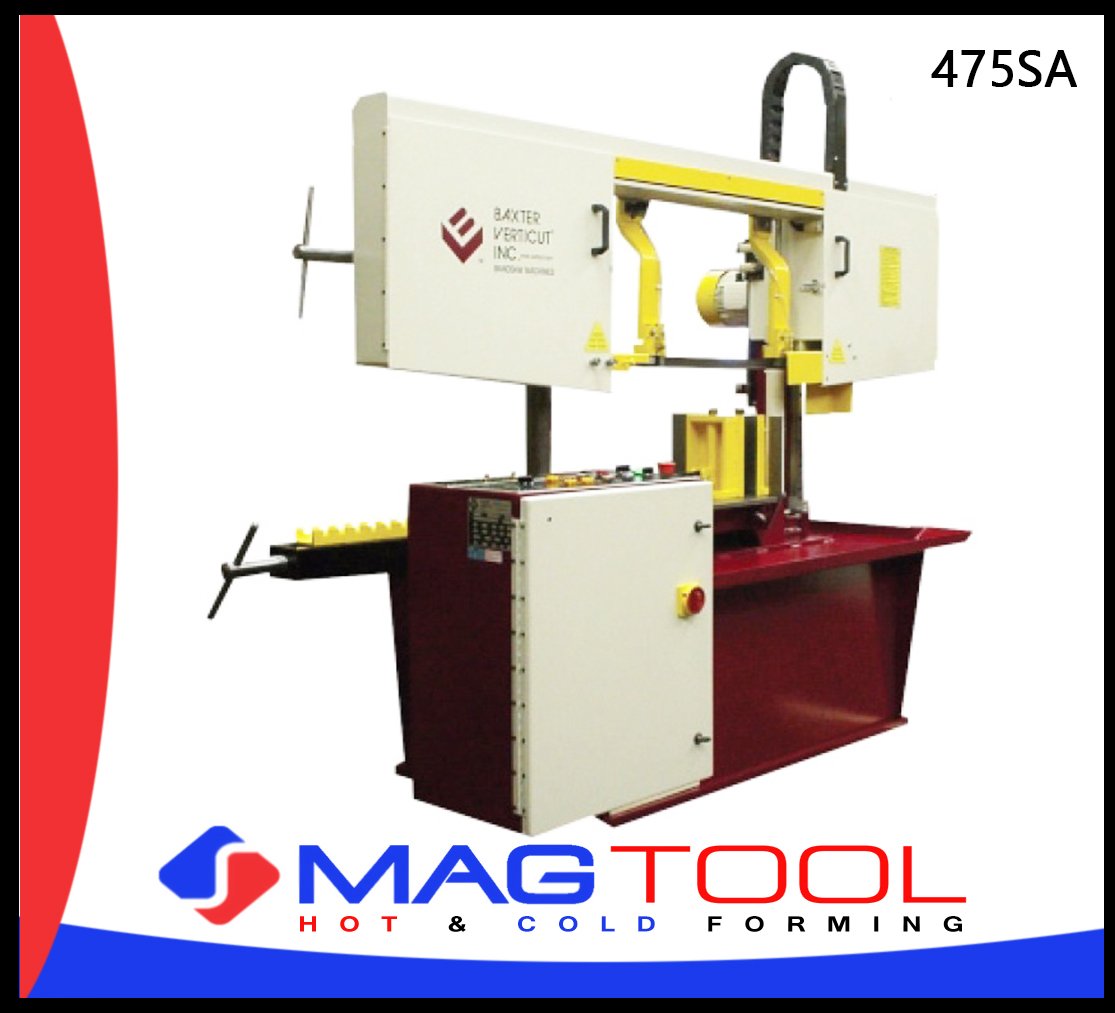

475SA
Standard Features
Double column machine provides maximum capacity and rigidity
Design utilizes linear bearings for high stiffness and smooth motion
Electronic variable speed
Blade breakage and open door automatic shut off with alarm indicator
Hydraulic lift of the saw head
Saw up travel can be set to minimize distance between the blade and the top of the material
Saw down travel can be set to allow notching of blocks
Semi-automatic cut cycle
Manual saw control, saw up, rapid saw down, saw cut
Cutting feed rate hydraulically adjusted
Load sensing valve stops the feed if the blade starts to overload, typical cutting structural shapes
Magnetic motor starter with automatic shut off at the end of cut, motors thermal overload protection
Power disconnect on machine
Blade guards
Powered blade brush to remove cutting chips
Quick acting material clamping
Miter cuts up to 45 degrees by swiveling vise
Adjustable material length stop for repetitive cutting
Steel wheels
Blade guides are carbide faced with rollers to remove blade twist and dampen vibration
Flood coolant system to both saw guides with adjustable flow rates
Direct blade drive using a planetary gear box for a high efficiency design
Electric system uses only C.S.A./UL approved compo-nents and is electrically approved
Premium quality bimetal band saw blade
Instruction and parts manual
